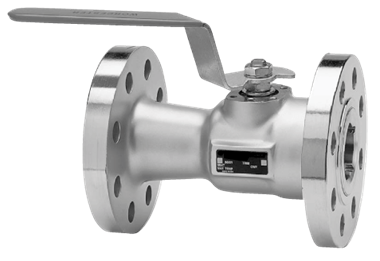

Flanged Ball Valves, Process Ball Valves, South Wales

Overview

The Worcester and Mars range of floating ball design flanged ball valves we can provide are suitable for the majority of our customer’s process applications and should be used where quality and performance are critical. Available ‘fire-tested’ as standard and can be installed to isolate some of the most hazardous medias used within a modern process plant.

Also available in this range are the Worcester ‘envirosafe’ design ball valves which can be installed on the most hazardous of applications as the valve is supplied offering dual gland sealing containment to prevent escapes to atmosphere and also have the added function of high cycling reliability exceeding a million process cycles.

Specifications

Pressure Rating	150 & 300
Materials	ASTM A352 LCB, ASTM A216 WCB & ASTM A351 CF8M, Other materials available on request to suit specific process applications.
End Connections	Flanged
Valve Bores	Full and reduced bore available
Size Range	½” to 10”
Seat Materials	Virgin PTFE, 15% or 25% Glass filled PTFE, Vespel, Delrin, Acetal, UHMWPE, Fluorofil, PEEK & Metal.
Body Designs	One piece end entry and two piece split body.
