Overview

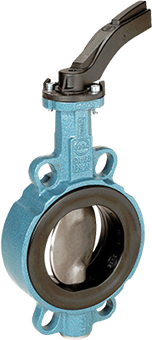

A universally applicable wafer type valve acc. to EN 593. The large variety of basic materials allows applications in different inudsties.

Specifications

Size Range 20mm - 600mm (3/4” - 24”)
Flange Accommodation BS4504 PN6/10/16
ANSI B 16.5, Class 150
BS 10 Table D and E
DIN 2501 PN 6/10/16
MSS SP44 Class 150
AWWA C 207
JIS B 2211-5K/10K
Temperature Range -20°C to +160°C (depending on material & pressure)
Pressure Rating Maximum 16 Bar
Body Material Cast Iron Iron GG-25 (Epoxy Coated)
Ductile Iron GGG-40 (Epoxy Coated)
Ductile Iron GGG-40.3 (Epoxy Coated)
Carbon Steel WCB (Epoxy Coated)
Stainless Steel CF8M
Aluminium Bronze
Disc Material Stainless Steel Gr. 304
Stainless Steel Gr. CF8M
Stainless Steel Gr. 316L
Stainless Steel Gr. 316 Ti
Duplex Stainless Steel 1.4469
Hastelloy 2.4883
Aluminium Bronze
Stem Material Stainless Steel Gr. 430F
Stainless Steel Gr. 316
Hastelloy 2.4883
Seat Material NBR
EPDM
CSM (Chlorsulphonated Polyethylene)
FPM (Viton)
Silicone
Polyurethane Elastomer

Data Sheets

Butterfly Valve Wafer Type

Manufacturers

At Cambrian, we are able to offer a full range of butterfly valves.  Please contact us for more details.
