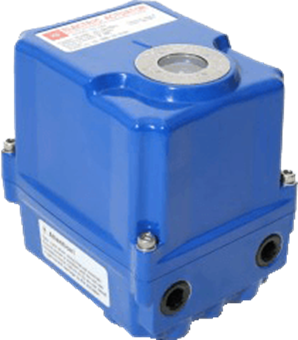

Electric Actuators (HQ004-006 Range)

Overview

Our HQ004 and HQ006 electric actuators have been specially designed for quarter turn applications such as small ball, butterfly, plug valves and dampers.

While both of these models are relatively compact, they still pack a punch, providing surprisingly high output torques suitable for most applications.

The high quality electrical components and alloy gearing built into these actuators ensure consistent reliability and an extended life span, guaranteeing lower costs and fewer problems than less durable solutions.

Specifications

Features and benefits

• Output torques of 40 and 60Nm respectively.
• Reversible motor with low current consumption.
• IP67 weatherproof.
• Two M20 cable entries.
• Manual override.
• Anti-condensation heater.
• Four limit switches.
• Push button terminal strip.
• 4-20mA and 0-10V control options.
• Optional local controls.
• Optional IP68 double sealed housing.

Data Sheets

HQ-004 HQ-006 Data Sheet
